Physical Installation Procedures:
PVM set up through the App
Setting up PVM in the app – Video Walkthrough

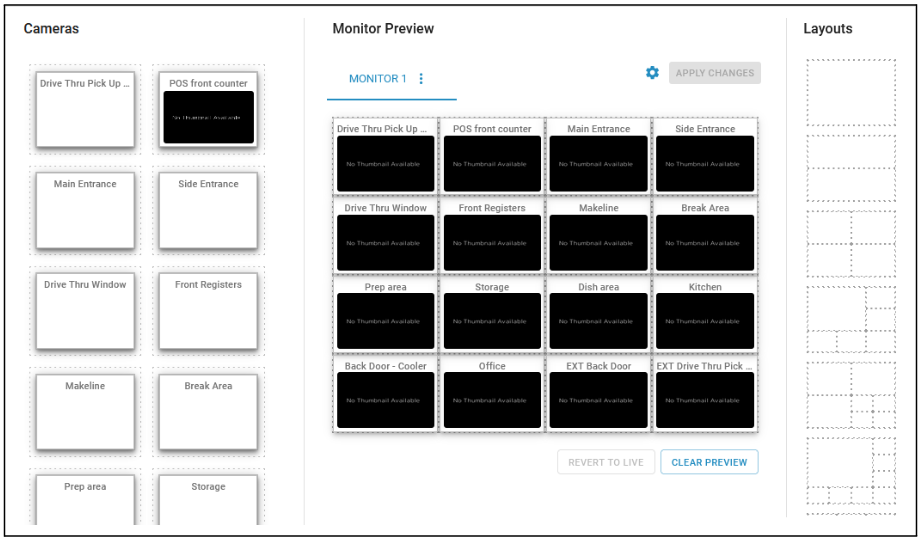

Navigate to “Site settings”. Across the menu at the top of the screen go to the Monitors tab.
Single Monitor
- Select the desired layout
- Drag/Drop the cameras in the order in which you would like them to display
- Select “apply changes”
Dual/Triple Monitor Set Up
If the site has two or three monitors and they are detected you will see this screen.
When setting up dual PVM you will toggle through each monitor (1 , 2, & 3) and drag/drop each camera to the desired monitor. To change layout select from the Right hand bar what layout you want or need.
If your monitors are not showing what it is that you want to see but another one is you are able to swap the views easily using the following:
Errors and Troubleshooting

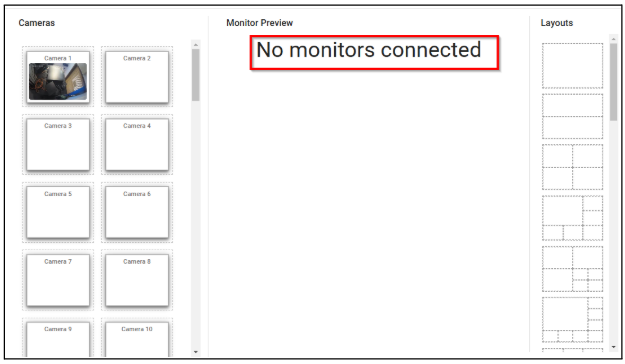

If there is an issue with the EnVR seeing the monitor connection you will see this screen.
- Check connections
- Cycle input sources on monitor to match connection type
- Reboot the EnVR
Mirrored Monitor Views
- Select gear icon and turn OFF Mirror all to Monitor 1 setting then hit Update and Apply Changes
