Physical Installation Procedures:
Locally Setting IP Address to Static or DHCP if needed
- Plug a USB keyboard into the back of the EnVR
- Plug in a monitor into the EnVR.

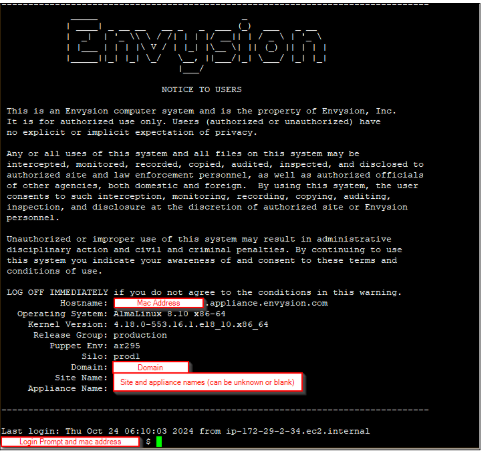

- Press Ctrl + Alt + F3 to bring up a “Notice To Users” and a login prompt
Setting the EnVR to Static – Video Walkthrough
The password prompt on the screen will not show characters as you are typing and you cannot use the 10-Key pad on the keyboard as it will put in random information. This is normal!
System Log In
case-sensitive username: ipadmin
password: Security.(last 4 digits of the MAC)
EXAMPLE:(Security.fa98)

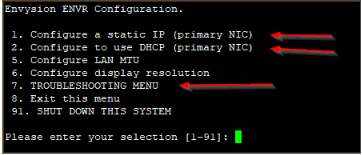

Type 1 and press <Enter> to choose “Configure a static IP(primary NIC)”.
<OR>
Type 2 and press <Enter> to choose “Configure to DHCP”

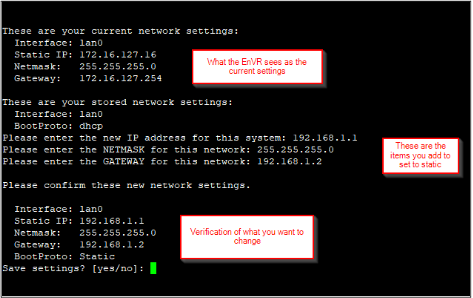

Enter the static IP information
Once IP information is entered, confirm correct, type “yes” and press <Enter> to save the settings.
Type “restart” to complete. This will restart only the internet adapter settings, not the whole DVR. If correctly entered the EnVR should now be active.
