Physical Installation Procedures:

Local VGA (Or HDMI) Monitor

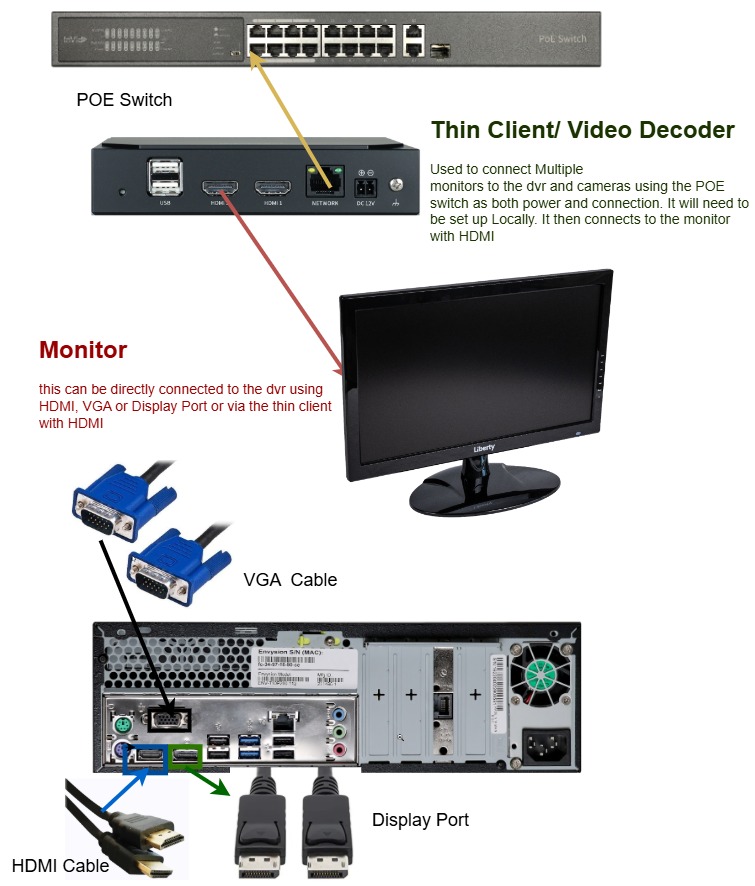

A VGA, DVI, or HDMI monitor can be connected to the EnVR to show a split-screen live view of all active cameras. A supported DVR setup can be connected to a VGA or HDMI monitor, based on the model, to show this view. By default, this monitor will show an 8-, 16-, or 32-camera view, depending on the supported DVR model. Refer to your installation cut sheet and, if included, connect a local monitor to the VGA port of the EnVR using the supplied VGA cable.

Unique dual PVMs are also supported by some supported DVR models.

NOTE: When trying to view the cameras using the VGA monitor you may need to set the username and password on the supported DVR before you can view them.
